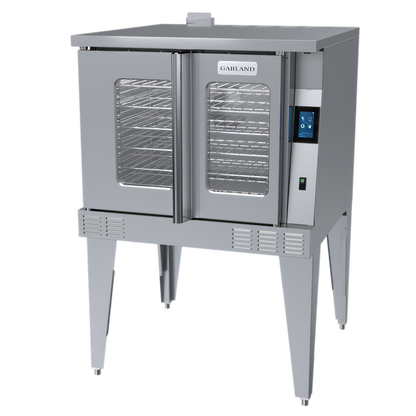

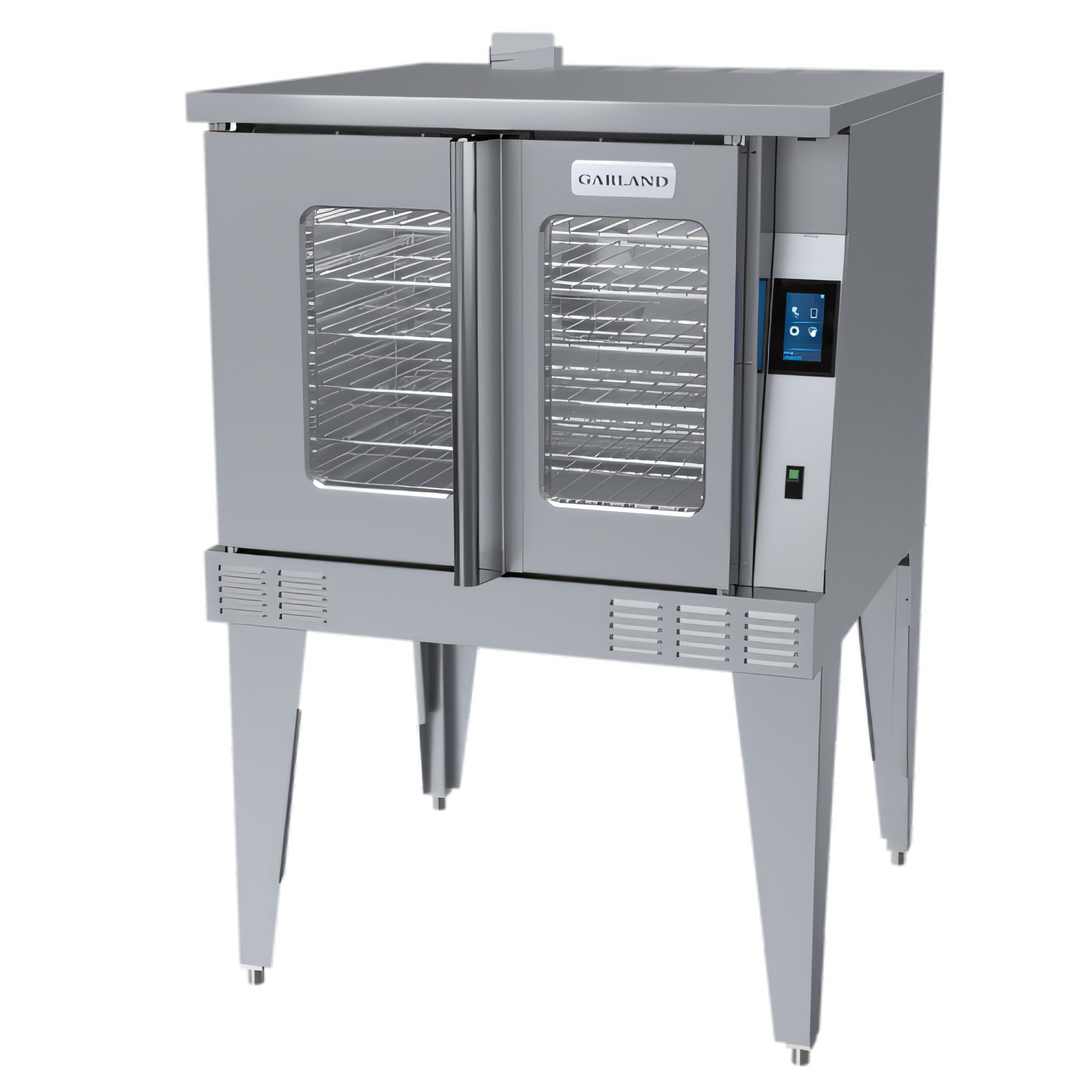

Garland MCO-ES-10M Master Convection Ovens - MCO-ES-10M
Model MCO-ES-10M · Single-Deck · Standard Depth
Deliver flawless bakes, roasts and finishes shift after shift. Garland’s Master Series single-deck electric convection oven couples a powerful 10.4 kW heating system with an intuitive EasyTouch™ controller and rugged stainless-steel construction to keep plates moving and food costs down in high-volume kitchens.
Features
- 4.3" EasyTouch™ screen with Press & Go one-touch start, multi-stage timers, recipe storage and Cook-‘n-Hold.
- Two-speed 3/4 HP fan motor bathes every rack in uniform heat—no pan rotation required.
- 24"-high, porcelain-enameled cavity holds 6 chrome racks on a 13-position guide; top rack is a comfortable 60" from the floor.
- Reinforced 60/40 dependent doors with double-pane thermal windows, full-length positive latch and patented Safety Door System that stops the fan if a door opens beyond 3".
- All-stainless front, sides, top and 25-1/2" legs; seamless coved-corner interior wipes clean fast.
- UL, cUL & NSF listed; backed by a 2-year parts/1-year labor warranty plus 5-year limited door warranty.
- Temperature range: 150 °F–500 °F (66 °C–260 °C).
- 100 programmable recipes with icons anyone can follow.
- Automatic Cook-‘n-Hold lowers temp to maintain moisture and food safety until you’re ready to serve.
- Auto cool-down and screen-lock cleaning mode improve safety and extend component life.
- Full-length welded hinge rod and dual door-rigidity strips withstand years of heavy use.
- Fan cut-off interlock and cool-touch door handles protect staff.
- Front/side service access minimizes downtime when maintenance is needed.
Specifications
| Exterior Dimensions (W×D×H) |
38″ × 41-1/4″ × 57-1/2″ (965 × 1048 × 1461 mm), includes legs |
| Oven Interior (W×D×H) |
29″ × 24″ × 24″ (736 × 610 × 610 mm) |
| Oven Capacity |
6 full-size sheet pans on 13-position guides |
| Heat Load / Power |
10.4 kW, electric |
| Fan Motor |
2-speed, 3/4 HP (high 1670 rpm / low 1430 rpm) |
| Electrical Requirements |
208 V or 240 V, 1 or 3 phase (50 A @ 208 V / 3 Φ) |
| Wall Clearances |
1″ sides (non-combustible), 6″ rear |
What our Experts Think
-
Consistent, Even Baking & Roasting:
Forced-air, two-speed fan circulates heat evenly throughout the cavity, minimizing hot spots for uniform results across all racks — ideal for baking, roasting, or batch cooking.
-
Flexible, High-Capacity Interior:
Holds six full-size sheet pans on 13-position rack guides inside a 24" high porcelain-lined cavity — perfect for high-volume foodservice or pastry production.
-
Smart, Easy-to-Use Controls:
Digital interface offers one-touch “Press & Go,” Cook-n-Hold, timers, and recipe storage — enabling repeatable cycles with minimal staff input.
-
Durable, Service-Ready Construction:
Stainless-steel exterior, porcelain-enameled cavity with coved corners, double-pane window doors, and positive-latch hinges ensure ruggedness and easy cleaning.
-
Workflow & Safety Features:
60/40 dependent doors with windows allow monitoring without opening; interior lighting and safety door-fan interlock enhance convenience and protection.
Q&A
Q: What is the Garland MCO‑ES‑10M?
A: It’s a full-size, single-deck electric convection oven from Garland’s Master series, designed for high-capacity commercial baking, roasting, and foodservice operations.
Q: What is the cooking capacity?
A: Large interior cavity accommodates six full-size sheet pans on six chrome-plated racks, with a 150 °F–500 °F temperature range.
Q: What heating and airflow features does it include?
A: 10.4 kW electric power with a forced-air, two-speed fan for even heat distribution and consistent cooking.
Q: What controls does it offer?
A: 4.3″ easyTouch digital control panel with Press-&-Go startup, Cook‑n‑Hold mode, programmable timers, and recipe functions.
Q: What is the construction like?
A: Stainless-steel exterior, porcelain-enameled interior with coved corners for easy cleaning, double-pane thermal door windows, and interior lighting for monitoring without opening.
Q: Where is it best used?
A: Ideal for bakeries, restaurants, catering kitchens, and high-volume foodservice operations requiring even, consistent cooking across multiple racks.
Maintenance Tips
-
Daily cleaning: Allow the oven to cool, then wipe the interior and racks with a damp cloth or mild detergent. Clean spills immediately to prevent buildup.
-
Exterior care: Wipe stainless-steel surfaces and control panels with mild detergent and a soft cloth. Avoid harsh abrasives or spraying water directly into controls.
-
Fan and airflow maintenance: Regularly remove racks and guides, and clean the air baffle and blower area to remove debris that could impair airflow or stress the motor.
-
Interior surfaces: Clean porcelain-enameled cavity and chrome racks with non-metallic pads or mild cleaners. For stubborn stains, lightly scour in the direction of the metal grain, then rinse and dry.
-
Cool-down procedure: After heavy use, allow the built-in fan to run until the cavity cools, or leave doors slightly open to protect the motor.
-
Periodic inspections: Check door seals, hinges, gaskets, and electrical connections. Ensure proper clearance around the oven for safe ventilation and motor airflow.
